Are you tired of dealing with print defects after a tool change? Efficient extruder parking is key to improving print quality. In this guide, we’ll cover the importance of parking the extruder during pauses, ensuring clean transitions, and preventing errors. You’ll learn step-by-step techniques and troubleshooting tips to master this essential process.
Understanding Extruder Parking
What is Extruder Parking?
Extruder parking refers to moving the active extruder to a predefined location away from the print area during a pause or tool change. This procedure is key to ensuring clean transitions, avoiding oozing or contamination, and preserving the print’s alignment and quality.
When parking the extruder, it is typical to:
Retract the filament slightly to prevent it from oozing.
Move the extruder to a designated “parking position,” often away from the building area.
Adjust the nozzle’s Z-height to prevent it from interfering with the print.
This process is especially critical in multi-extruder setups or multi-color/material printing, where precision and synchronization are crucial.
Why is Proper Extruder Parking Critical?
Proper extruder parking is essential for:
Preventing filament oozing: Without correct parking, materials can drip out of the nozzle, leading to contamination and print defects.
Saving time and reducing errors: A correct parking strategy minimizes the risk of print failure, ensuring smoother transitions during pauses.
Maintaining print quality: It ensures there is no misalignment in multi-material prints and prevents layer shifting.
Common Mistakes to Avoid During Parking
| Filament leakage |
Not retracting the filament properly can lead to unwanted oozing. |
| Layer misalignment |
Failing to ensure precise positioning after the pause can cause shifts in the print alignment. |
Tip: Always test your extruder parking settings before committing to a long print.
Step-by-Step Guide to Parking the Extruder
Retracting the Filament
Before parking, retract the filament to prevent material from leaking out of the nozzle. This is done through G-code commands, and retraction distances may vary depending on the material:
Move to the Parking Position
The extruder’s parking position should be far away from the active print area to avoid contact with printed parts. This moves the extruder to the bottom-left corner of the print bed.
Lift the Nozzle (Optional)
To avoid accidental contact with the print, you can raise the nozzle slightly using the Z-axis.
Perform the Tool Change
Once the extruder is parked, you can safely switch the filament, clean, or replace the nozzle without disturbing the print. Avoid moving the print bed during this process to maintain alignment.
Resume the Print
After the tool change, prime the filament using a purge or extrusion command. This returns the extruder to its previous position, ensuring no layer shifts occur when resuming the print.
Temperature and Retraction Management
Managing Nozzle Temperature During Pauses
To prevent clogging, it’s essential to manage the nozzle temperature:
For materials prone to oozing (e.g., PETG), slightly reduce the temperature to minimize leakage.
For materials that solidify quickly, maintain the temperature to avoid clogging.
Using Coasting and Wipe Towers
These features in slicer software help reduce oozing by allowing the extruder to finish extruding slightly before moving away from the print area. Coasting helps by expelling excess material, while wipe towers serve as a designated area to clean the nozzle before resuming the print.
Filament Retraction and Its Role in Preventing Oozing
Ensure that the retraction settings in your slicer are correctly configured. Improper retraction can lead to filament leakage, which affects print quality.
Troubleshooting Common Parking Issues
Preventing Filament Oozing
Even with retraction, certain materials might ooze during tool changes:
Fixing Layer Shifts
Misalignments occur if the extruder doesn’t return to the exact pause location:
Dealing with Nozzle Clogging
Clogs often happen due to prolonged pauses with the filament in the hot nozzle:
Optimizing Extruder Parking with Slicer Software
Using PrusaSlicer to Set Precise Parking Positions
PrusaSlicer offers a “Park Commands” feature that lets users define exact retraction and parking coordinates, ensuring accuracy during tool changes.
Cura's Parking Position Adjustments
In Cura, users can modify the parking position and nozzle height via the custom G-code settings. Make sure to enable absolute positioning with G90 for smooth resumption.
Slicer Tips for Effective Retraction and Parking
To ensure optimal retraction, fine-tune both the retraction distance and speed settings in your slicer. This prevents excess filament buildup and ensures cleaner prints.
Advanced Tips for Efficient Extruder Parking
Integrating OctoPrint for Enhanced Troubleshooting
OctoPrint can help automate and monitor the parking process, providing real-time data on G-code execution and allowing users to implement custom scripts for improved control.
Using Custom G-code for Enhanced Automation
Custom G-code scripts can provide precise control over the extruder’s behavior during pauses, helping you fine-tune every aspect of the parking process.
Fine-Tuning Firmware Settings for Parking
Adjust your firmware settings to improve extruder parking accuracy. Fine-tuning commands can help achieve precise and consistent results during pauses.
Conclusion
Mastering extruder parking during tool changes is essential for achieving high-quality 3D prints. By applying the techniques in this guide, you can avoid common issues like filament oozing, layer misalignment, and nozzle clogging. Incorporating these strategies will enhance the efficiency and reliability of your prints.

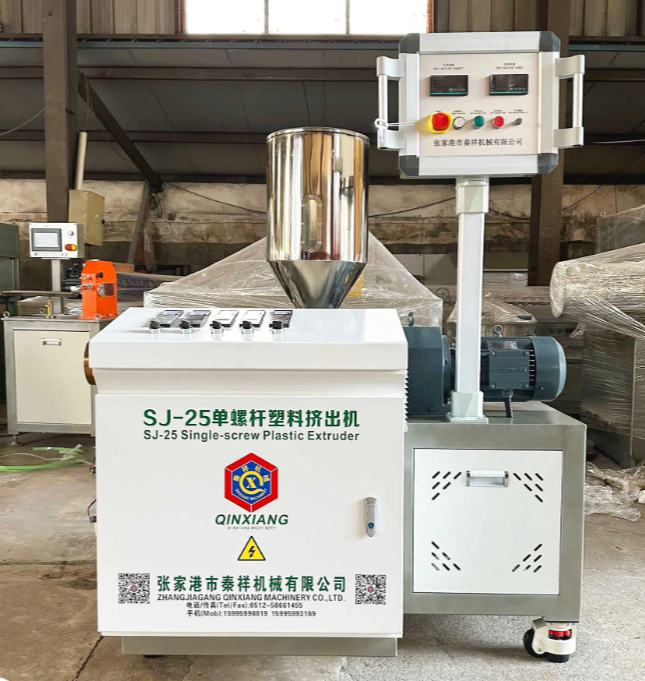

Qinxiang Machinery offers reliable solutions that can improve your printing process. Their products, like the Lab-Scale Plastic Extruder, provide high precision and value, helping users achieve excellent results in 3D printing.
